Build Client Loyalty with One System for Hair, Tattoo and Skin Treatments

$1,752.00

🚢
Free Shipping
3-5 days · Tracking

🛡️
After-Sales Support
2-year service · Tech support

✅
CE Certified
Professional grade

Get instant quote & assistance

196 in stock

Category: Brand:

Description

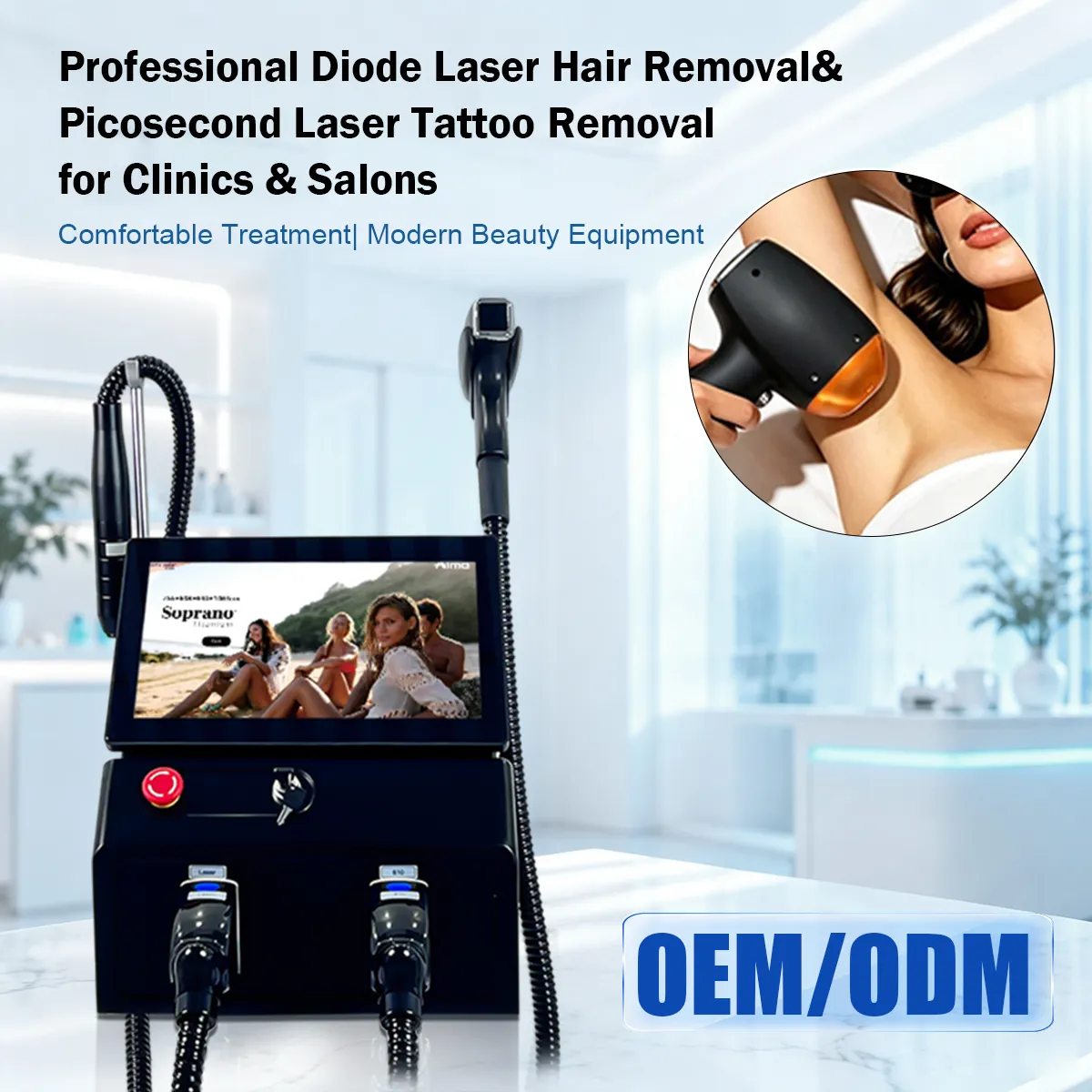

10-Bar Diode · Picosecond Laser · Carbon Facial

Turn One Client Visit into a Longer Treatment Journey

This 10-bar diode picosecond laser system helps salons build connected treatment plans around hair reduction, tattoo removal, pigment-focused applications and carbon facial services. Clients can return for different concerns instead of viewing the business as a single-service provider.

The system combines a five-wavelength diode handpiece with a separate picosecond treatment module. FAC optics, sapphire contact cooling, 5000W machine power and an HD touchscreen support professional daily operation.

10 Bars
Diode Configuration
Professional energy capacity and coverage
5 Wavelengths
Hair-Removal Module
755 / 808 / 830 / 940 / 1064nm
532–1320nm
Picosecond Applications
Tattoo, pigment and carbon facial options
5000W
Machine Power
Complete machine power specification

Build More Value Across the Client Journey

Different aesthetic concerns often appear at different stages of the same client relationship. A hair-removal customer may later ask about an unwanted tattoo, visible pigment or a carbon facial treatment.

Start with Hair Reduction

Create repeat face and body sessions around the client’s hair-growth cycle.

Add Tattoo or Pigment Care

Offer professionally assessed treatments through the separate picosecond module.

Extend into Facial Services

Use the 1320nm application for carbon-assisted facial treatment packages.

The result is a broader professional service pathway built around one coordinated equipment platform rather than several unrelated machines.

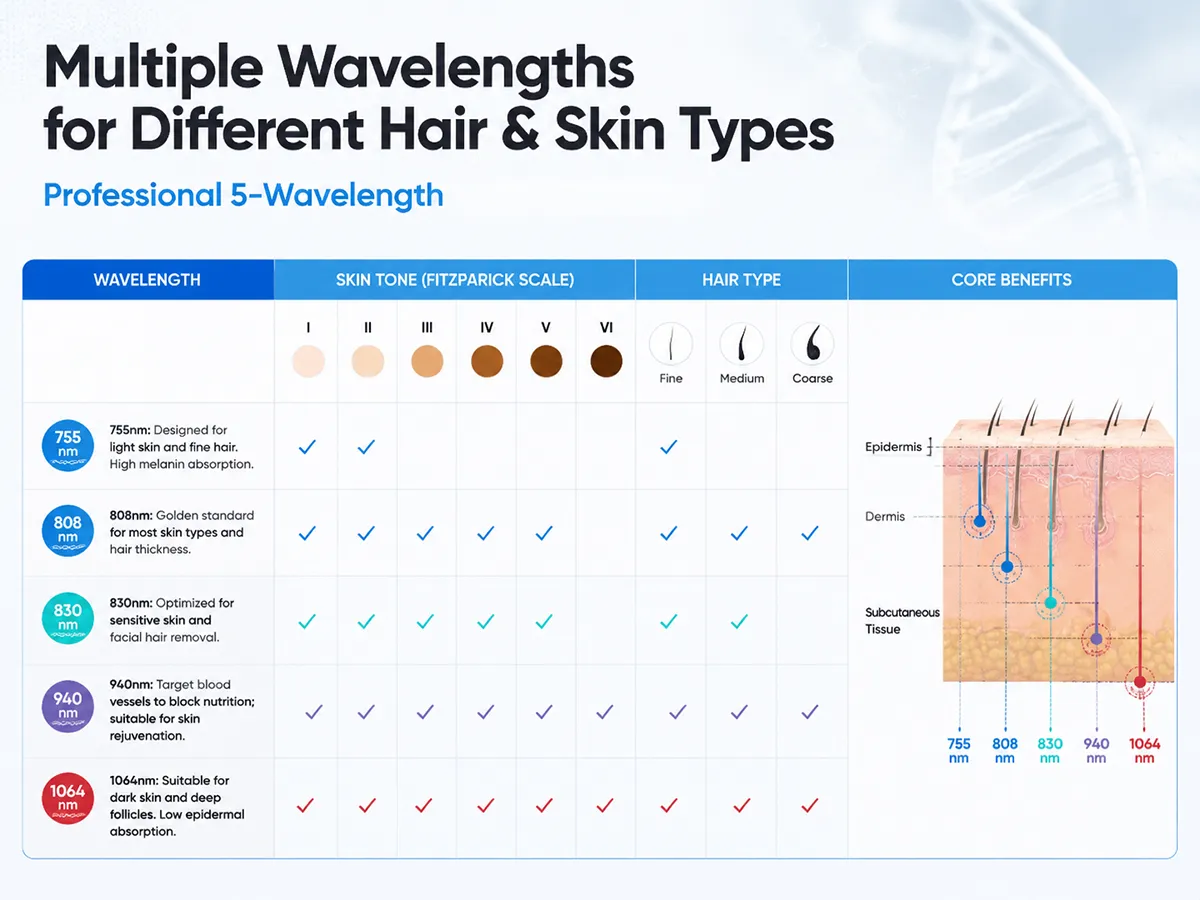

Match Diode Coverage to Different Hair and Skin Profiles

Hair depth, diameter and melanin concentration differ between clients and treatment areas. The system uses
5 wavelength diode laser technology
to give trained operators more flexibility when planning professional hair-reduction sessions.

Wavelength Technical Characteristic Treatment Focus
755nm Higher melanin absorption Fine hair and lighter skin profiles
808nm Balanced absorption and penetration General face and body applications
830nm Complementary mid-depth coverage Facial and precision-focused areas
940nm Additional depth coverage Broader multi-wavelength protocols
1064nm Deeper penetration with lower epidermal melanin absorption Coarse hair and darker skin profiles

Operators should select energy, pulse timing and treatment pace according to the client assessment, treatment area and supplied professional protocol.

Deliver More Controlled Diode Energy with 10 Bars and FAC

The hair-removal module contains ten diode laser bars. This configuration is designed to provide stronger energy capacity, broad treatment coverage and a longer service life than basic lower-bar arrangements.

FAC fast-axis collimation helps reduce beam divergence and guides the diode output into a more concentrated, uniform treatment area. Better beam control also helps reduce energy loss caused by optical-path spreading.

10 Diode Bars
FAC Beam Control
Uniform Coverage
5000W Machine Power

The 5000W figure describes the complete machine’s power specification. It is not the optical output power of either laser handpiece.

Extend the Relationship Beyond Hair Removal

The picosecond module delivers ultra-short pulses that create a photo-mechanical effect within selected pigment targets. Fragmented pigment can then be processed gradually by the body.

Buyers searching for a
picosecond diode laser
are generally comparing combination platforms that place dedicated picosecond and diode technologies within one machine rather than one handpiece producing both technologies.

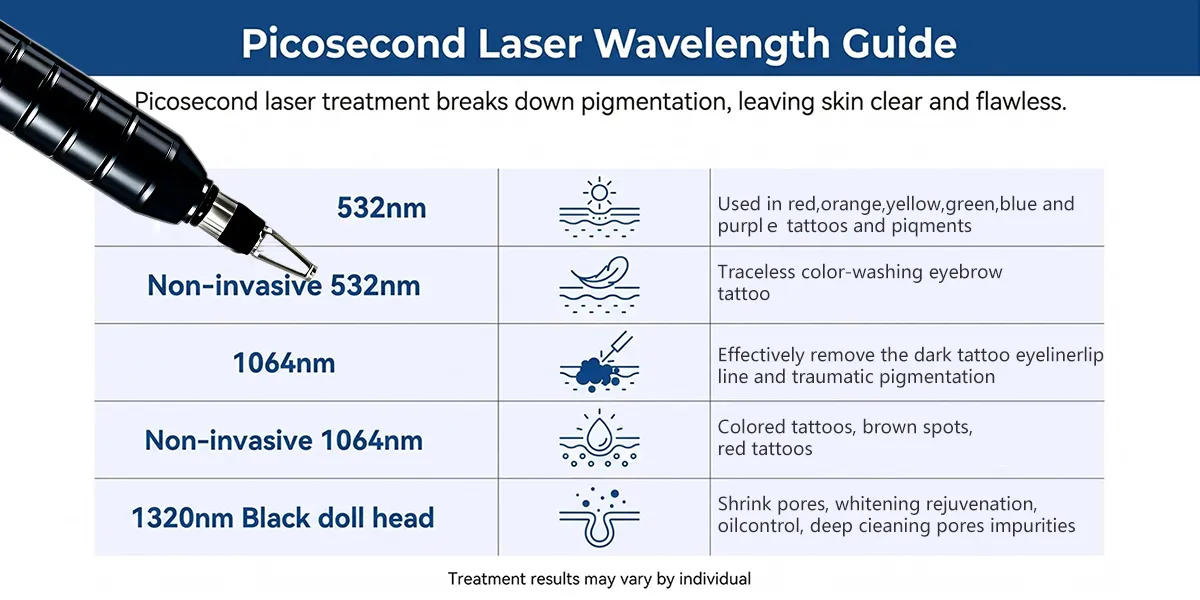

532nm Application

Used for selected superficial pigment targets and colored tattoo inks according to professional assessment.

1064nm Application

Used for selected darker tattoo inks and deeper pigment targets with appropriate treatment parameters.

1320nm Carbon Facial

Adds a carbon-assisted facial option focused on pore cleansing, oil management and refreshed-looking skin.

Tattoo and pigment responses vary with color, depth, density, treatment history and individual characteristics. Appropriate eye protection and professional protocols are required.

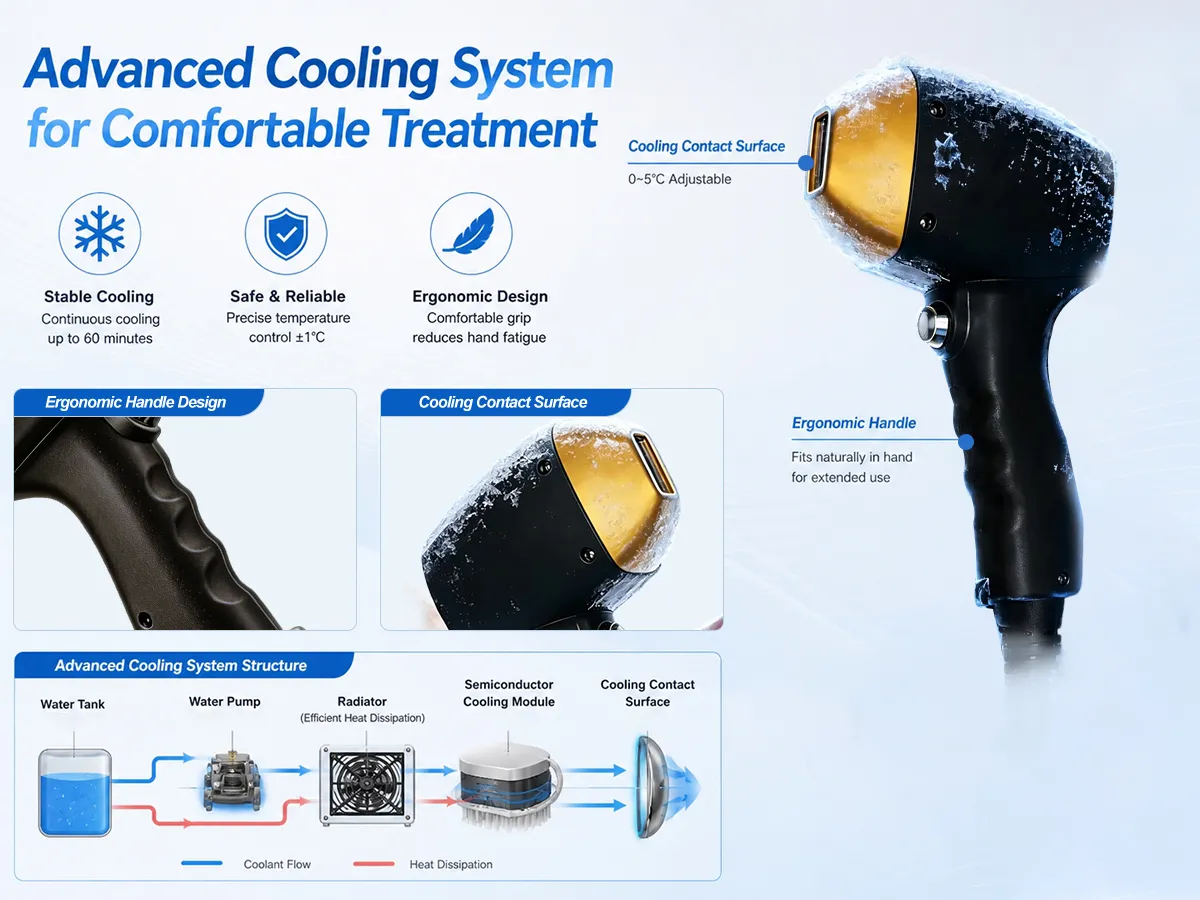

Keep Hair-Removal Sessions Comfortable and Controlled

The hair-removal handpiece uses a genuine sapphire contact surface with a stated cooling temperature of approximately 5°C. The
diode laser cooling system
combines coolant circulation, a water pump, radiator heat dissipation and semiconductor cooling.

  • Sapphire contact cooling for the diode handpiece
  • Comfort support during facial and body treatments
  • Ergonomic grip designed for extended professional use
  • High-power exhaust fan supporting heat management
  • Cooling stability designed for continuous sessions of up to 60 minutes

The contact-cooling feature belongs to the diode hair-removal handpiece and should not be presented as part of the separate picosecond handpiece.

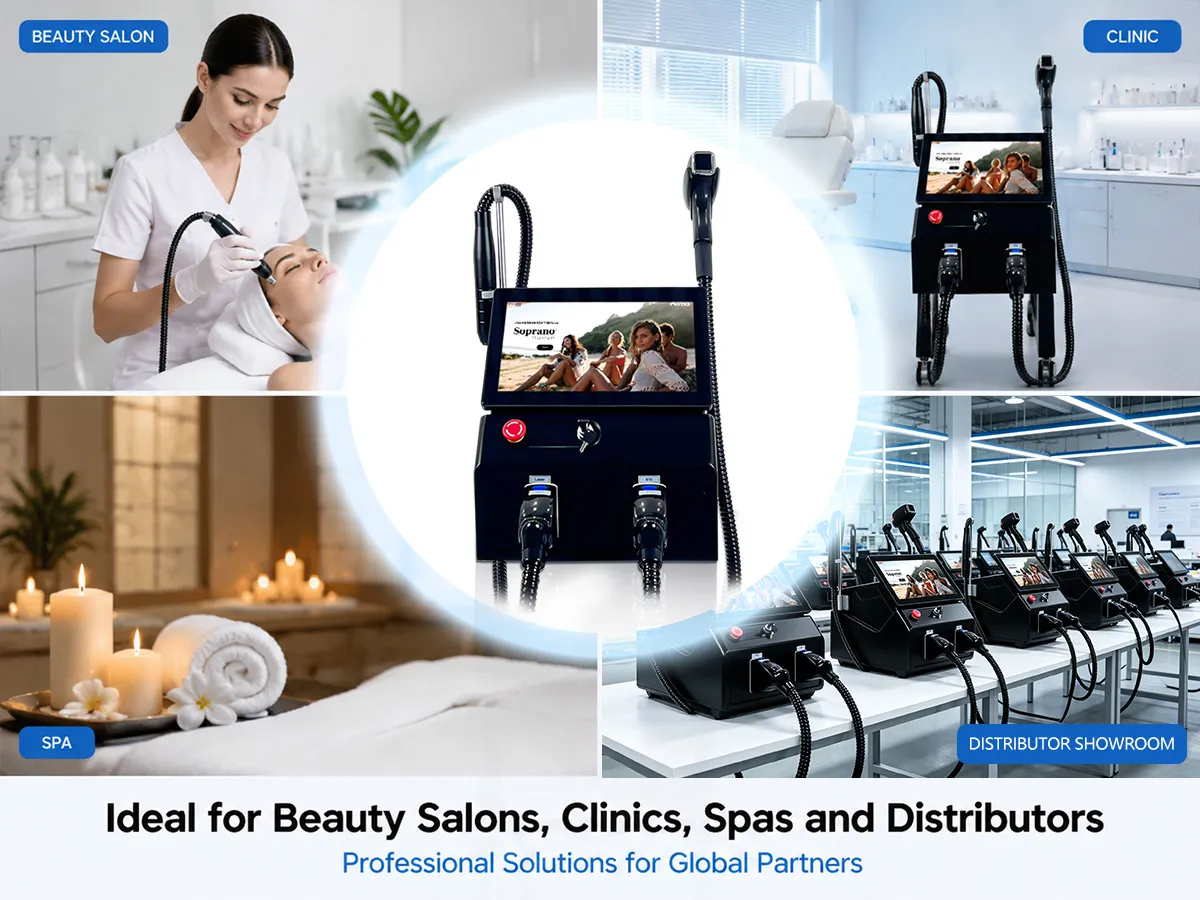

Designed for Businesses That Want Repeat Client Opportunities

Beauty Salons

Connect recurring hair-reduction sessions with complementary facial services.

Aesthetic Clinics

Serve hair, tattoo and pigment concerns through dedicated treatment modes.

Medical Spas

Build a wider client journey around hair and skin-focused treatments.

Distributors

Offer a 10-bar combination platform to professional equipment buyers.

Core Product Specifications
System Type Professional diode and picosecond combination system
Machine Power 5000W complete machine power
Diode Configuration 10 laser bars with FAC fast-axis collimation

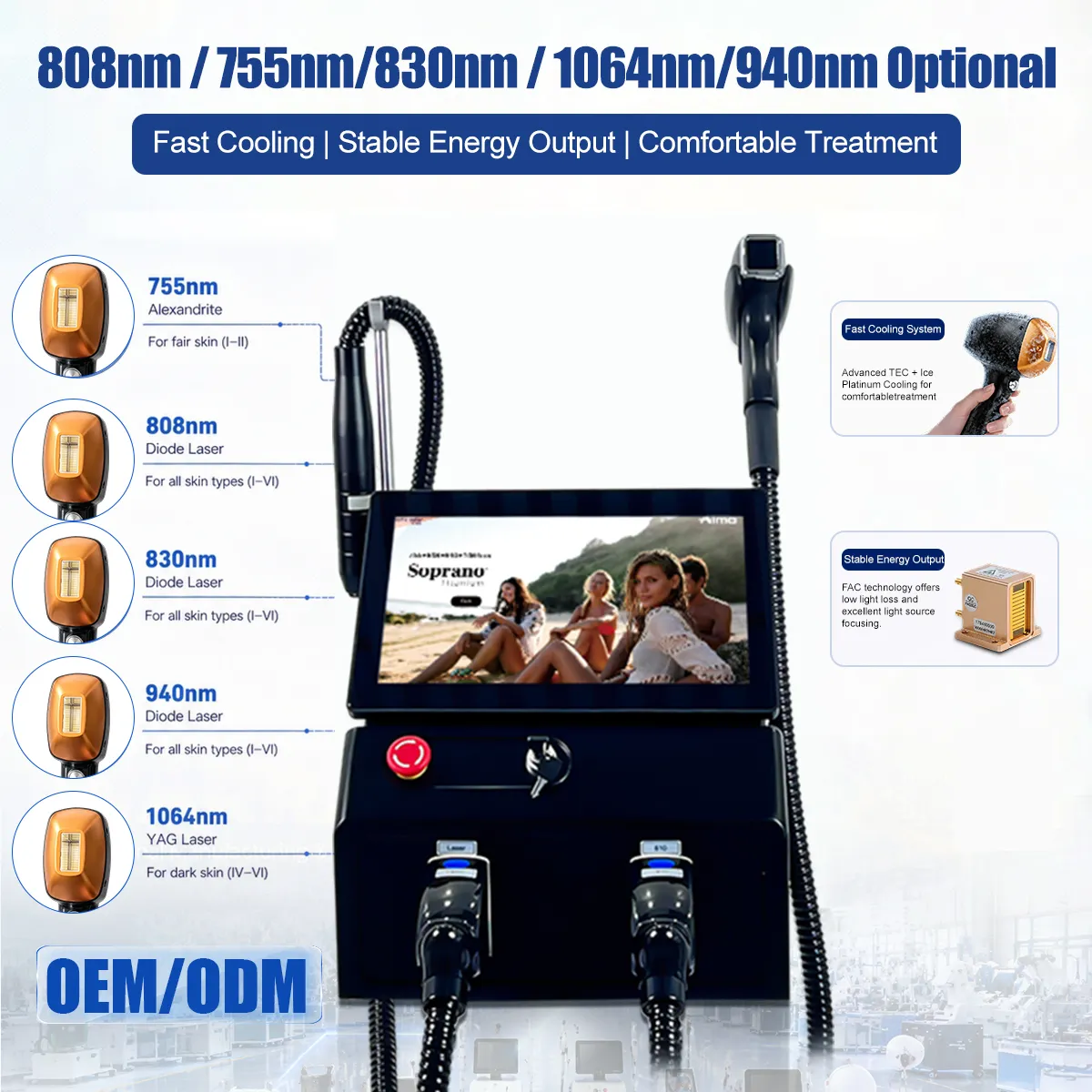

Diode Wavelengths 755 / 808 / 830 / 940 / 1064nm
Picosecond Applications 532nm / 1064nm / 1320nm treatment heads
Main Services Hair reduction, tattoo removal, pigment treatments and carbon facials
Diode Cooling Genuine sapphire contact cooling at approximately 5°C
Interface HD color touchscreen with separate treatment modes
Power Options Market-specific configurations within 110–240V
Warranty 2 years, subject to supplied warranty terms

Prepare the System for Your Sales Market

International distributors and private-label buyers can request branding, interface localization, market-specific voltage and packaging support.

Startup-screen logo
Machine-body branding
Multilingual interface
Market voltage
Customized packaging

Final branding, voltage, accessories and delivery arrangements are agreed before production.

Frequently Asked Questions

What makes this model different from a basic 2-in-1 system?

Its key positioning is the professional 10-bar diode configuration with FAC optics, five hair-removal wavelengths and sapphire cooling, combined with picosecond tattoo and carbon facial applications.

Does 5000W mean laser optical output?

No. It is the complete machine power specification and should not be presented as the optical output of either treatment handpiece.

Can both treatment modules operate simultaneously?

No. The diode and picosecond modules use different handpieces, settings and operating protocols. The appropriate mode is selected for each appointment.

Does the cooling system apply to both modules?

No. The sapphire contact-cooling system belongs to the diode hair-removal handpiece.

Why are multiple hair-removal sessions normally required?

Hair develops in different growth cycles. A professionally planned course allows treatments to address follicles during appropriate growth stages.

Can it remove every tattoo in one session?

Tattoo response depends on ink color, depth, density, age and treatment history. Multiple appropriately spaced sessions may be required.

What is the 1320nm head used for?

It is used for carbon-assisted facial treatments focused on pore cleansing, oil management and refreshed-looking skin.

What warranty is included?

The system includes a two-year warranty together with remote technical and after-sales support, subject to the supplied warranty terms.
